Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps
Home » Products » Seismic Support » Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps

Product Category

Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • DIN, ANSI, GB

  • Medium Carbon Steel

  • Female

  • Galvanized Sheet

  • Seismic Supporting System/Sesmic Bracing System

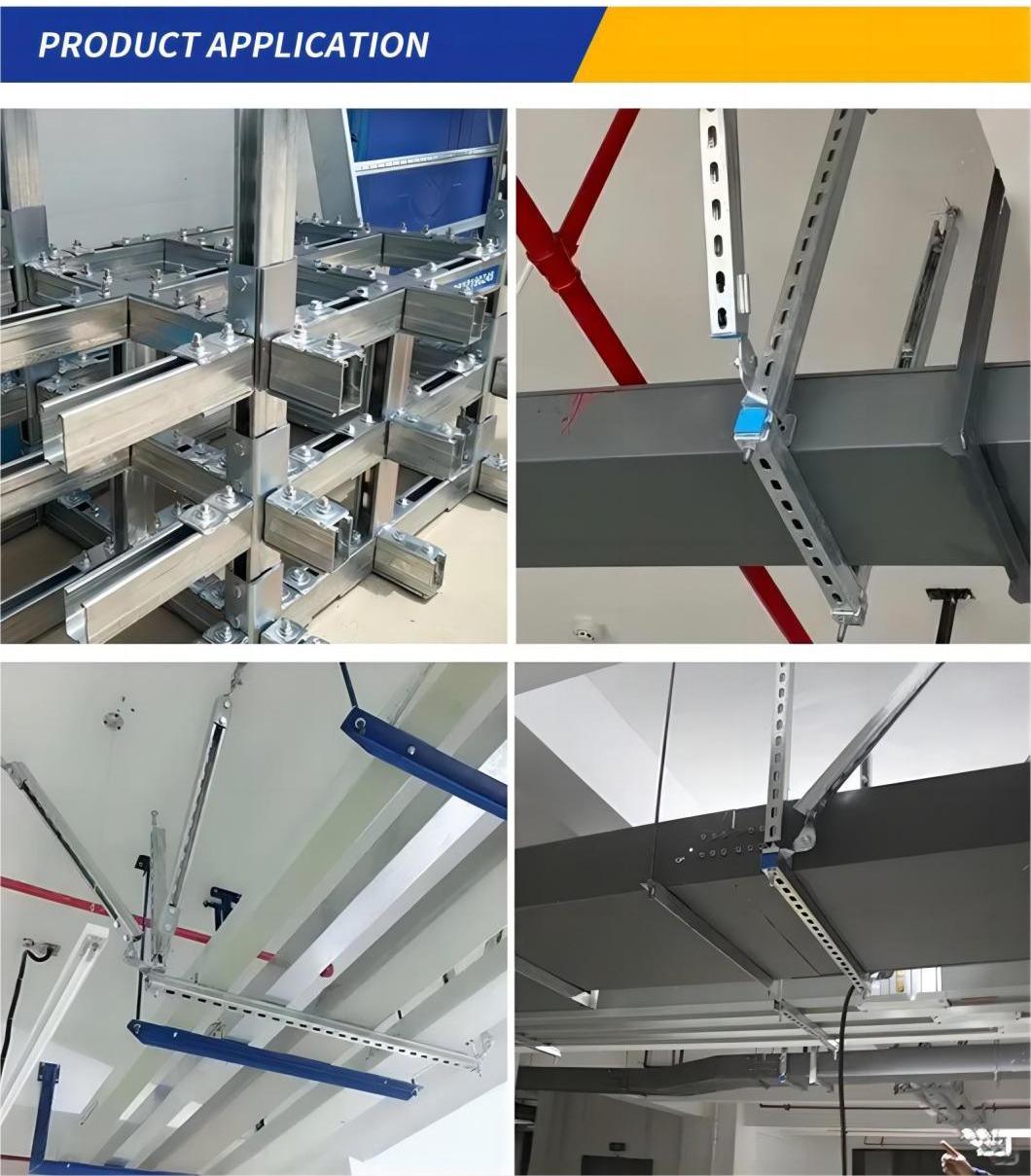

  • Underground Garage/Bridge/Ventilation/Water Pipe

Product Description

Seismic supporting systems are a type of structural system that is designed to provide stability and resilience in buildings and other structures during seismic events such as earthquakes. The system incorporates isolators or dampers at the base of the structure to absorb and dissipate seismic energy, reducing the transmission of vibrations to the superstructure.

Seismic supporting systems are commonly used in tall buildings, construction of bridges, industrial structures, hospitals and schools, and historical buildings to ensure their stability during earthquakes, to mitigate the effects of seismic forces and ensure their structural integrity.

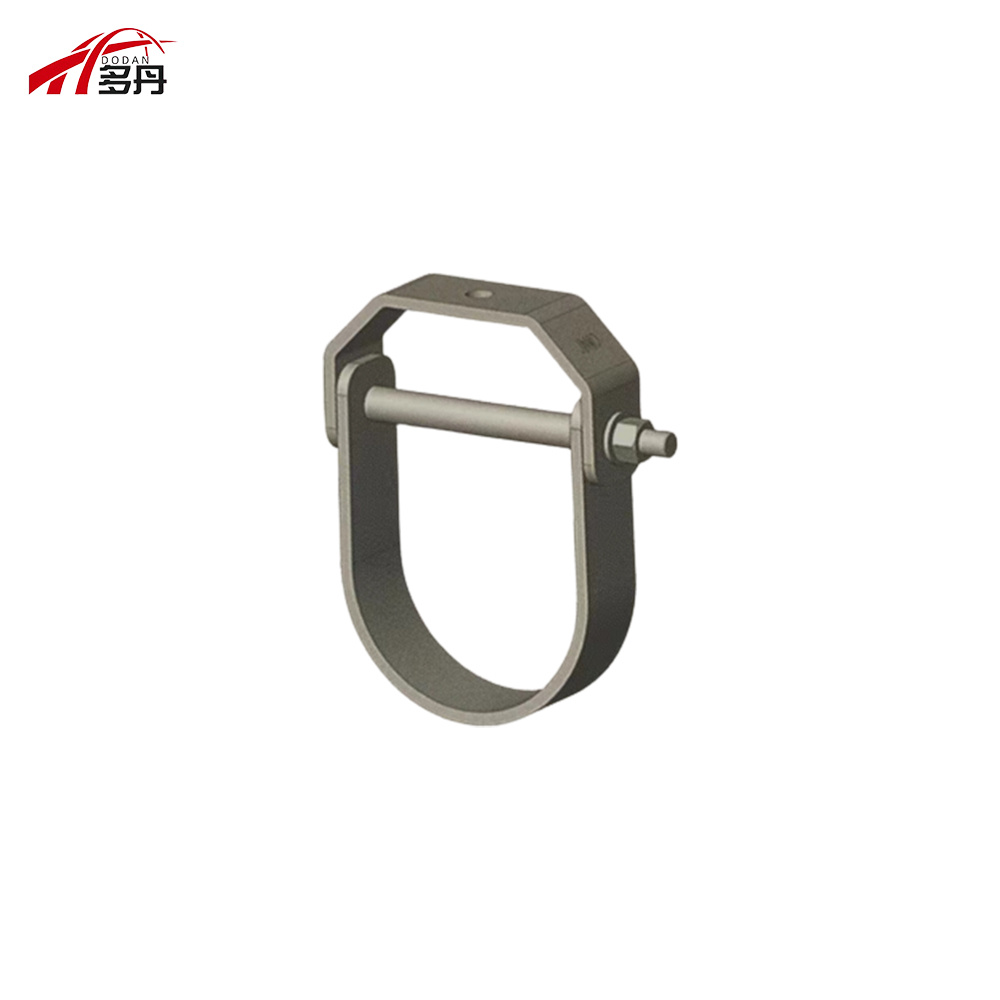

Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps
Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps
Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps

Features:
1. Reinforced Construction: Utilizes extra reinforcement and more robust construction techniques, including the use of strong materials like steel and reinforced concrete, to enhance the structure's resistance to seismic forces.
2. More uniform galvanizing, oxidation resistance, and long service life

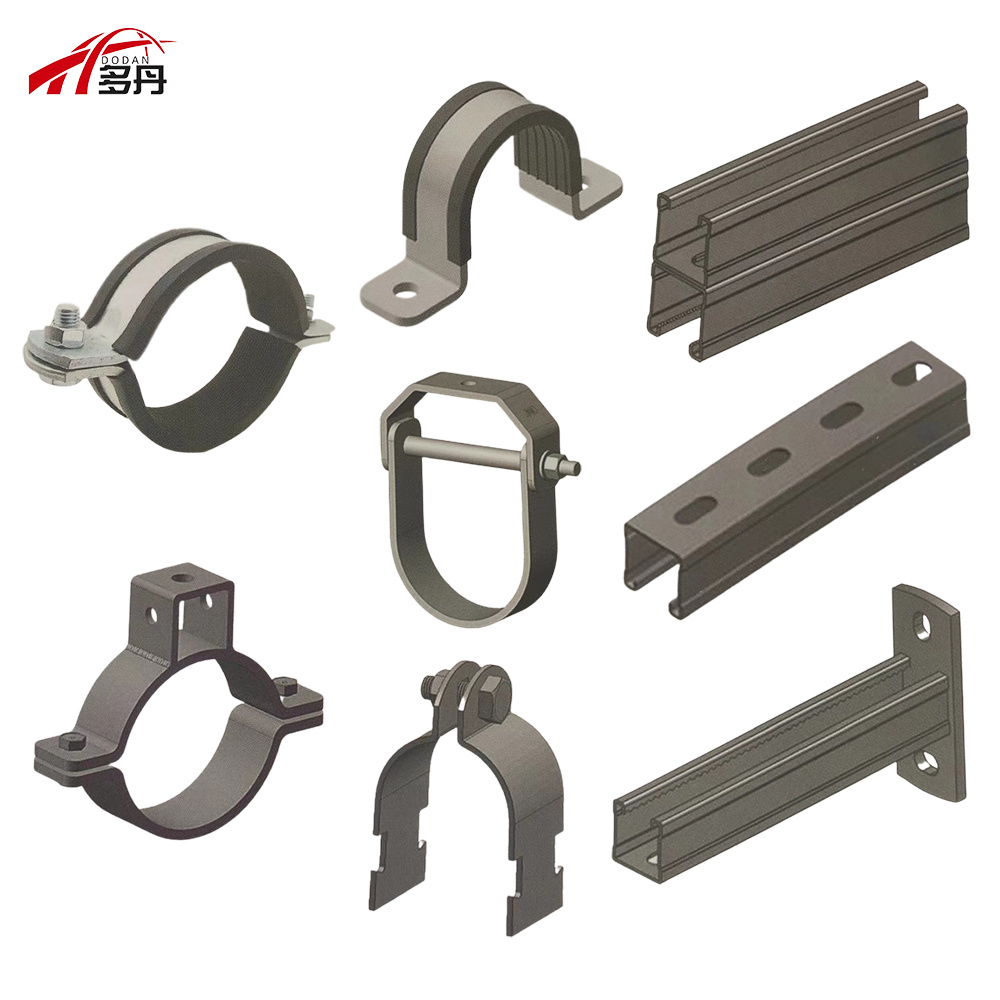

3. Full range of accessories including C Channels, O Type/U Tyep/P Type Clamps, Angle Corner Connectors, Pipe Hangers, etc.
4. Easy to Install, provice technical support.

Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps
Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps
Product Parameters
Application
Q235B Steel Building Construction Seismic Supporting System
Place of Origin
China
Color
Natural, Hot Dip Galvanized
Keyword(Main Products)
Seismic Support, Seismic Bracing, Vibration Support, Stabilizer Bracket, Cantilever Bracket, Pipe Clamps,
Pipe Hanger, Sway Brace Pipe Hanger, Strut Channel Fittings, C Channel, Water Pipe Hanger, Seismic Stent,
Angle Corner, Corner Connector, Air Channel Bracket, Double Channel Steel, U Channel, Pipe Fitting
Function
Anti-seismic, Anti-vibration, Anti-earthquake,
Customized
Customized packaging
Customized logo
Graphic customization

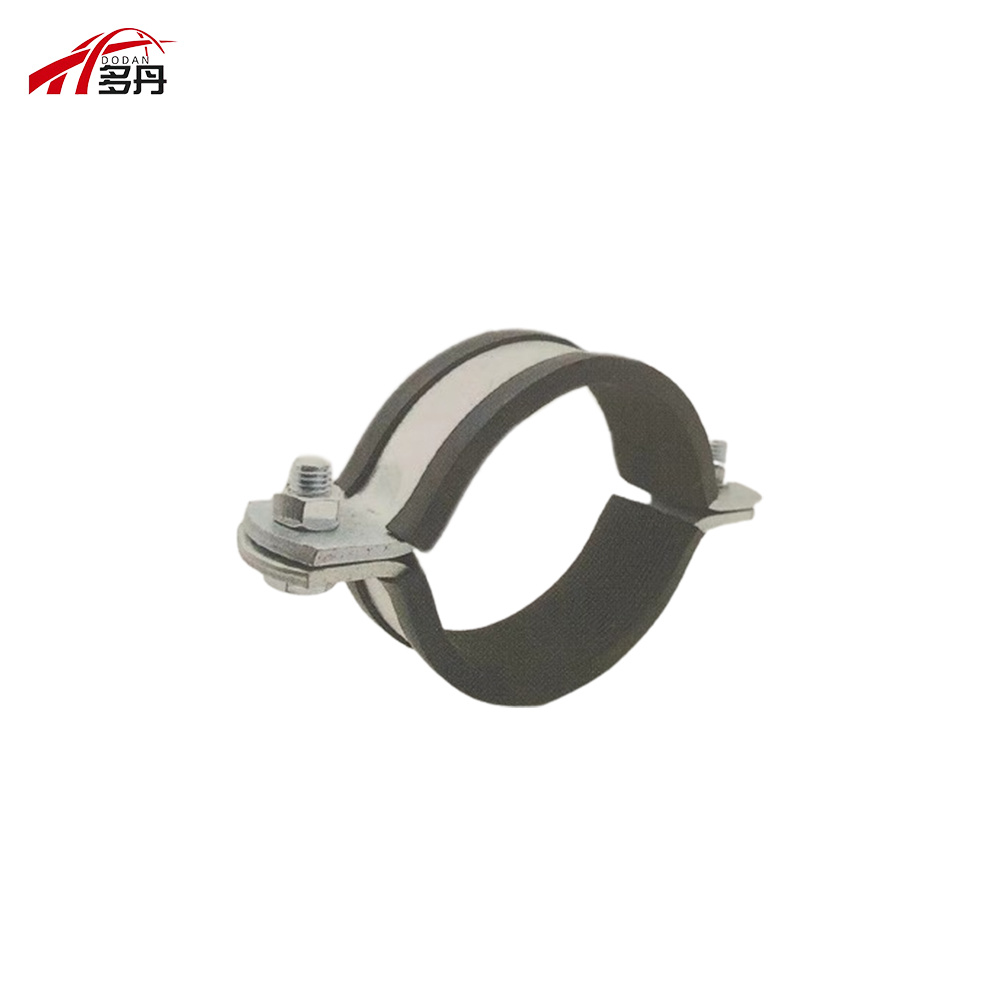

O-shaped Pipe Clamp
Hoop range (mm) Thickness(mm) Applicable Bolt Width (mm)
17-20 6 M12 40
21-27
33-35
42-45
44-48
57-61
75-79
88-90
110-114
135-140
165-170
U-shaped Pipe Clamp
Pipe OD(mm) Up and Down Width(mm) Stud Bolt Aperture(mm) Height(mm)
21.3 30/30 M6×50 11 73
26.7 30/30 M6×55 11 80
33.4 30/30 M6×65 11 84
42.2 30/30 M6×75 11 95
48.3 30/30 M6×80 11 103
60.3 30/30 M6×90 11 114
75.0 45/45 M10×120 13 140
88.9 45/45 M10×130 13 155
114.3 60/45 M10×160 17 193
141.3 60/45 M12×190 17 225
168.3 60/45 M12×220 20 254
219.1 60/45 M16×280 20 324
273.1 80/60 M20×350 22 435
323.9 80/60 M20×400 22 475
355.6 120/60 M24×450 26 533
406.4 120/60 M24×500 26 560
457.0 120/60 M24×550 26 628
More Seismic Support Accessories Please Contact Us.
Related Products

Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps

Company Profile

Hebei Dodan Trading Co., Ltd. (Handan Yongnian Yizhao Fastener Co., LTD.) is a scientific and technological innovative enterprise specializing in the production and research and development of building parts. Our philosophy is to "do exquisite building accessories, create a real brand enterprise."

The main products are aluminum mold auxiliary materials, PC auxiliary materials, template accessories, pins, pin pieces, single support,oblique support, through the wall screw, positive and negative buckle screw, as well as various accessories,adjustable base, top support and other construction accessories. Company adhering to the principle ofpeople-oriented, since its inception has been insisting on doing a good job in product quality products,strict control, excellence. Not price oriented, only quality oriented.
Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose ClampsSeismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps

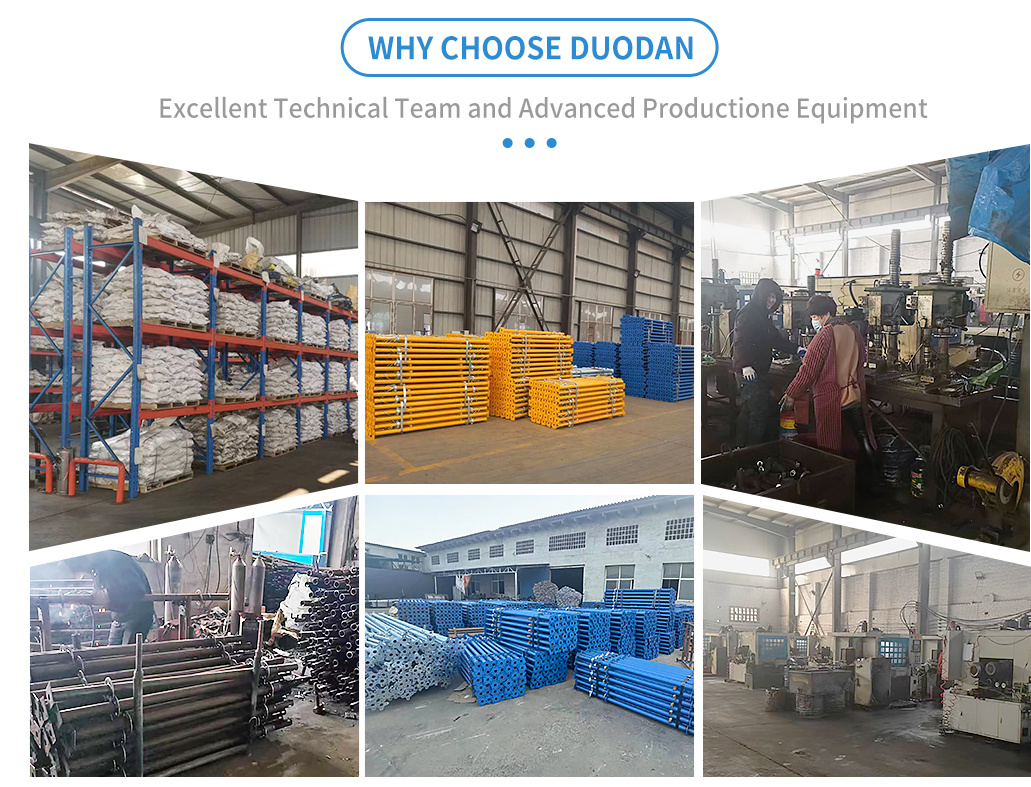

By virtue of our excellent technical team and advanced production equipment, we constantly explore and innovate, increase new varieties,expand reproduction, and unswervingly do good products of high quality, with high quality, high efficiency return society, to customers with the greatest satisfaction. The general manager of the company invites friends from all walks of life to visit guidance, business negotiations. Welcome new and old customers to customize new unique products with drawings and samples, and jointly contribute to the high efficiency and energy saving of building accessories products.
Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps

Certifications

Seismic Support System Steel Pipe Fittings U/O/P/Ohm Type Hose Clamps

FAQ

Q: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory.

Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .

Q: Do you have quality control?
A: Yes, we have gained API, ISO authentication.

Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.

Q:Can we get the some samples? Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
