| Quantity: | |
|---|---|
DIN, ANSI, GB
Medium Carbon Steel
Female
Galvanized Sheet

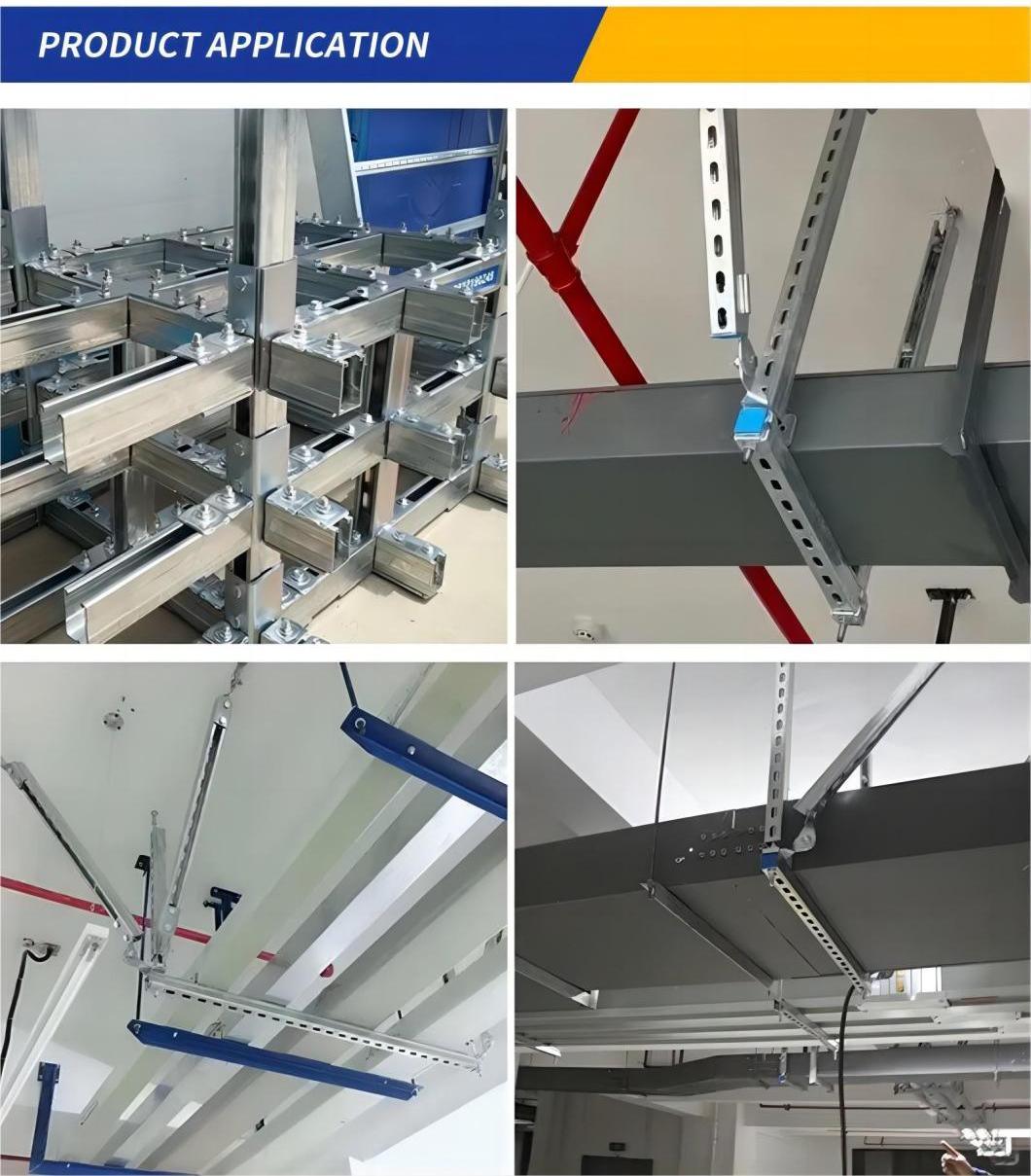

Seismic Supporting System/Sesmic Bracing System
Underground Garage/Bridge/Ventilation/Water Pipe
Seismic supporting systems are a type of structural system that is designed to provide stability and resilience in buildings and other structures during seismic events such as earthquakes. The system incorporates isolators or dampers at the base of the structure to absorb and dissipate seismic energy, reducing the transmission of vibrations to the superstructure.
Seismic supporting systems are commonly used in tall buildings, construction of bridges, industrial structures, hospitals and schools, and historical buildings to ensure their stability during earthquakes, to mitigate the effects of seismic forces and ensure their structural integrity.
Features:
1. Reinforced Construction: Utilizes extra reinforcement and more robust construction techniques, including the use of strong materials like steel and reinforced concrete, to enhance the structure's resistance to seismic forces.
2. More uniform galvanizing, oxidation resistance, and long service life

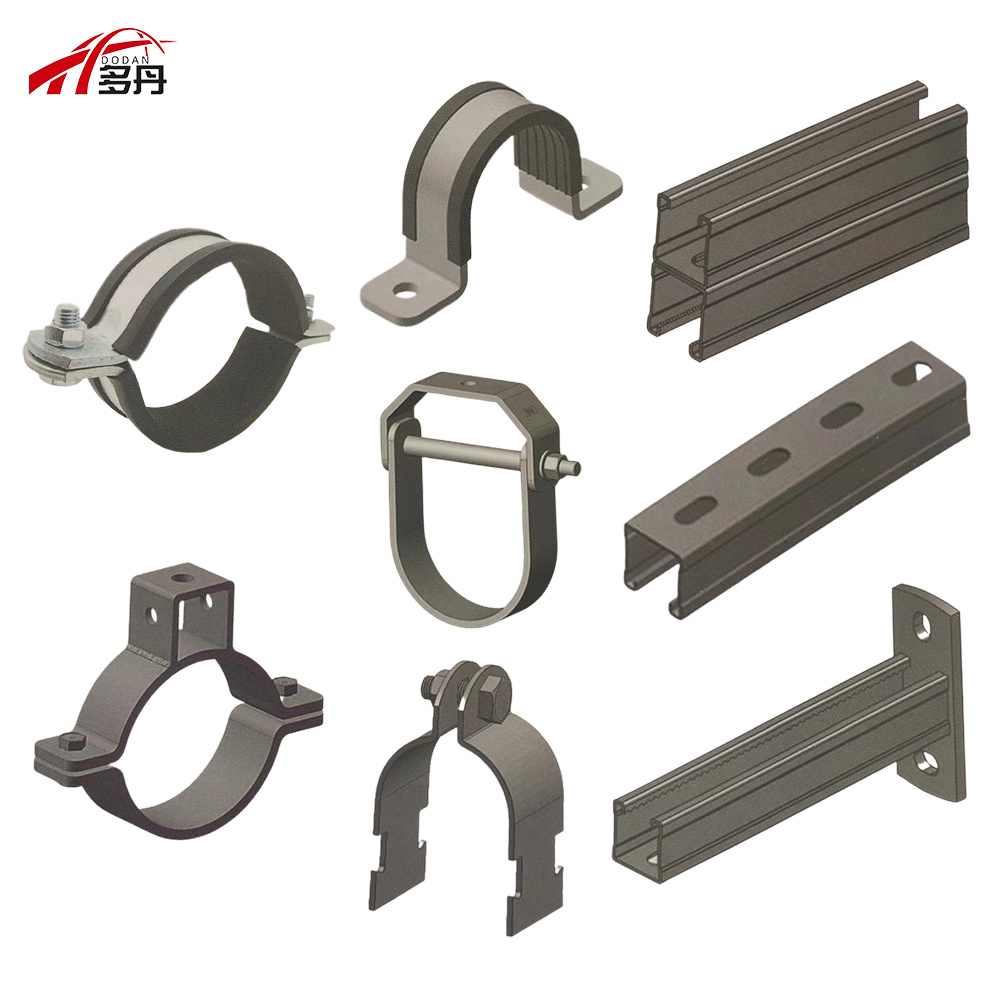

3. Full range of accessories including C Channels, O Type/U Tyep/P Type Clamps, Angle Corner Connectors, Pipe Hangers, etc.
4. Easy to Install, provice technical support.
| Application | Q235B Steel Building Construction Seismic Supporting System |
| Place of Origin | China |
| Color | Natural, Hot Dip Galvanized |
| Keyword(Main Products) | Seismic Support, Seismic Bracing, Vibration Support, Stabilizer Bracket, Cantilever Bracket, Pipe Clamps, Pipe Hanger, Sway Brace Pipe Hanger, Strut Channel Fittings, C Channel, Water Pipe Hanger, Seismic Stent, Angle Corner, Corner Connector, Air Channel Bracket, Double Channel Steel, U Channel, Pipe Fitting |
| Function | Anti-seismic, Anti-vibration, Anti-earthquake, |
| Customized | Customized packaging Customized logo Graphic customization |

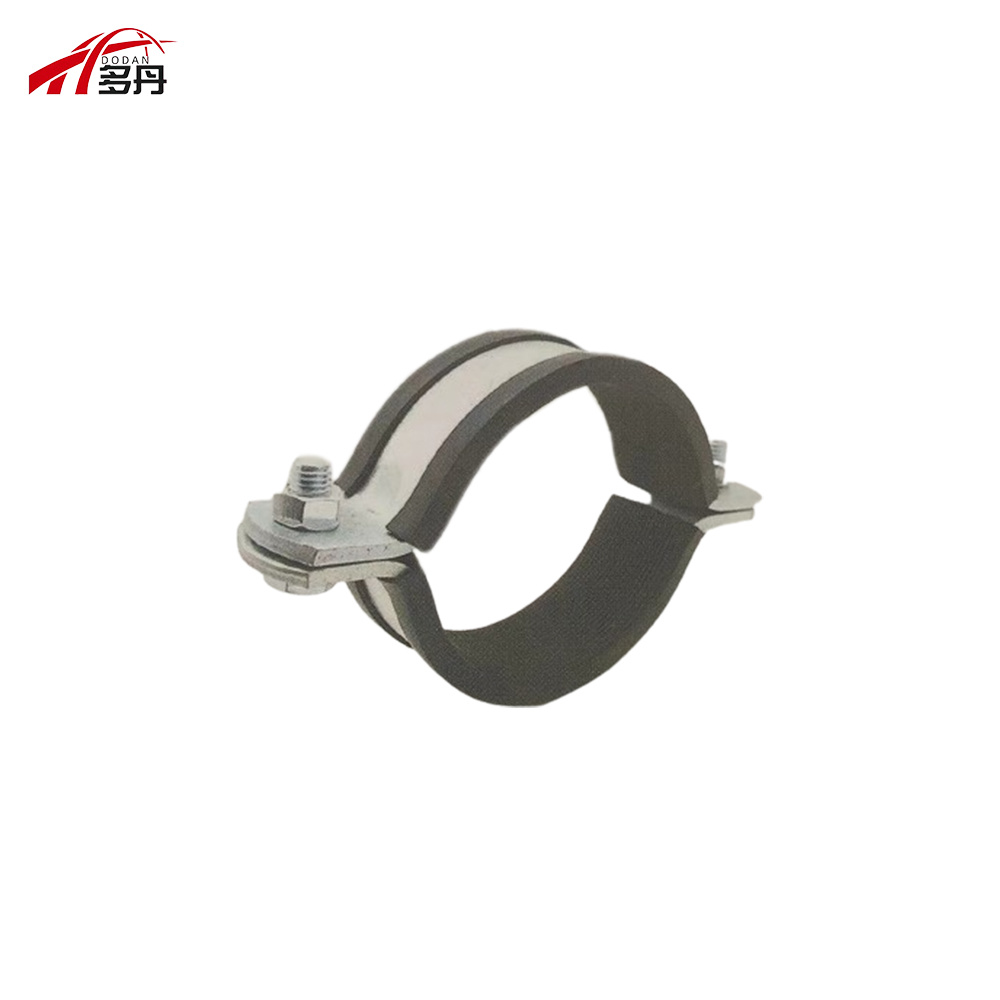

| O-shaped Pipe Clamp | |||
| Hoop range (mm) | Thickness(mm) | Applicable Bolt | Width (mm) |
| 17-20 | 6 | M12 | 40 |
| 21-27 | |||
| 33-35 | |||
| 42-45 | |||
| 44-48 | |||
| 57-61 | |||
| 75-79 | |||
| 88-90 | |||
| 110-114 | |||
| 135-140 | |||
| 165-170 | |||
| U-shaped Pipe Clamp | ||||
| Pipe OD(mm) | Up and Down Width(mm) | Stud Bolt | Aperture(mm) | Height(mm) |
| 21.3 | 30/30 | M6×50 | 11 | 73 |
| 26.7 | 30/30 | M6×55 | 11 | 80 |
| 33.4 | 30/30 | M6×65 | 11 | 84 |
| 42.2 | 30/30 | M6×75 | 11 | 95 |
| 48.3 | 30/30 | M6×80 | 11 | 103 |
| 60.3 | 30/30 | M6×90 | 11 | 114 |
| 75.0 | 45/45 | M10×120 | 13 | 140 |
| 88.9 | 45/45 | M10×130 | 13 | 155 |
| 114.3 | 60/45 | M10×160 | 17 | 193 |
| 141.3 | 60/45 | M12×190 | 17 | 225 |
| 168.3 | 60/45 | M12×220 | 20 | 254 |
| 219.1 | 60/45 | M16×280 | 20 | 324 |
| 273.1 | 80/60 | M20×350 | 22 | 435 |
| 323.9 | 80/60 | M20×400 | 22 | 475 |
| 355.6 | 120/60 | M24×450 | 26 | 533 |
| 406.4 | 120/60 | M24×500 | 26 | 560 |
| 457.0 | 120/60 | M24×550 | 26 | 628 |

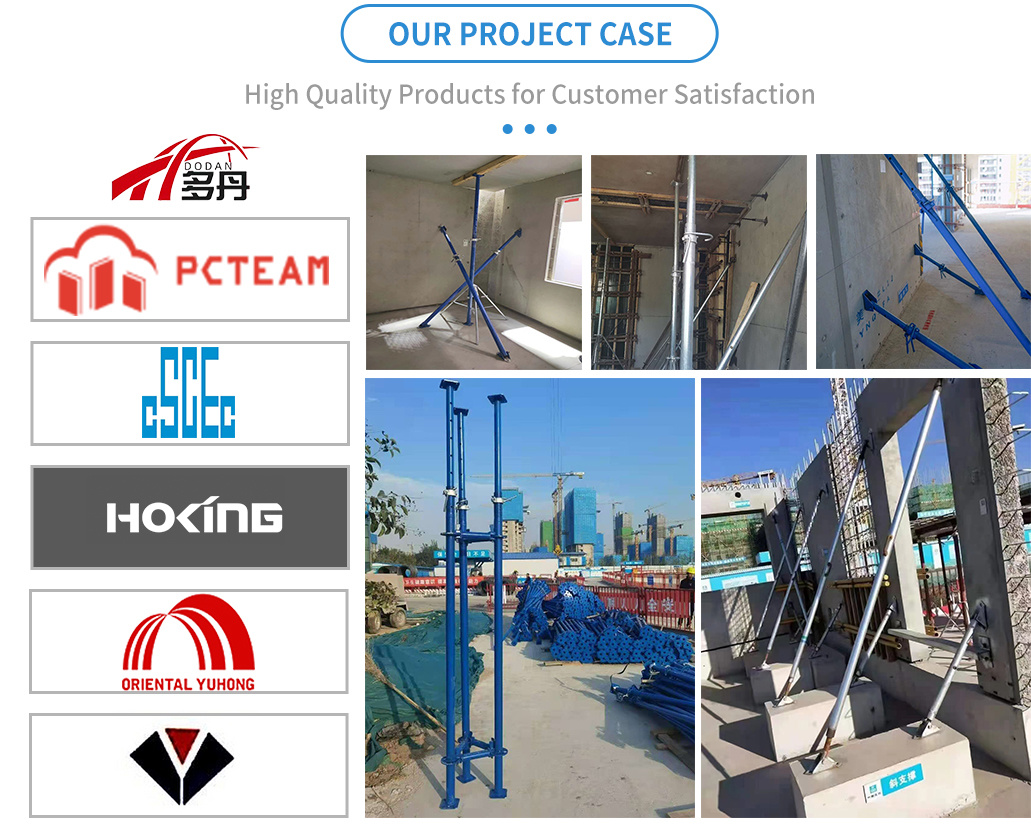

Hebei Dodan Trading Co., Ltd. (Handan Yongnian Yizhao Fastener Co., LTD.) is a scientific and technological innovative enterprise specializing in the production and research and development of building parts. Our philosophy is to "do exquisite building accessories, create a real brand enterprise."

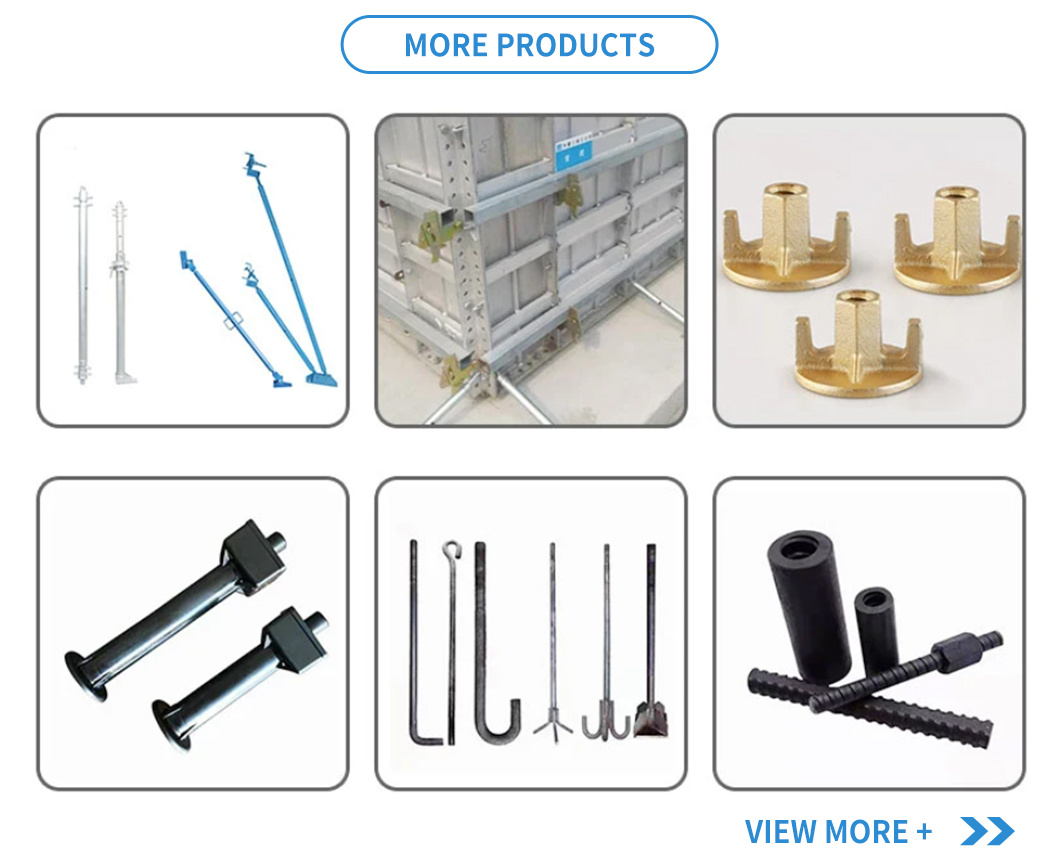

The main products are aluminum mold auxiliary materials, PC auxiliary materials, template accessories, pins, pin pieces, single support,oblique support, through the wall screw, positive and negative buckle screw, as well as various accessories,adjustable base, top support and other construction accessories. Company adhering to the principle ofpeople-oriented, since its inception has been insisting on doing a good job in product quality products,strict control, excellence. Not price oriented, only quality oriented.

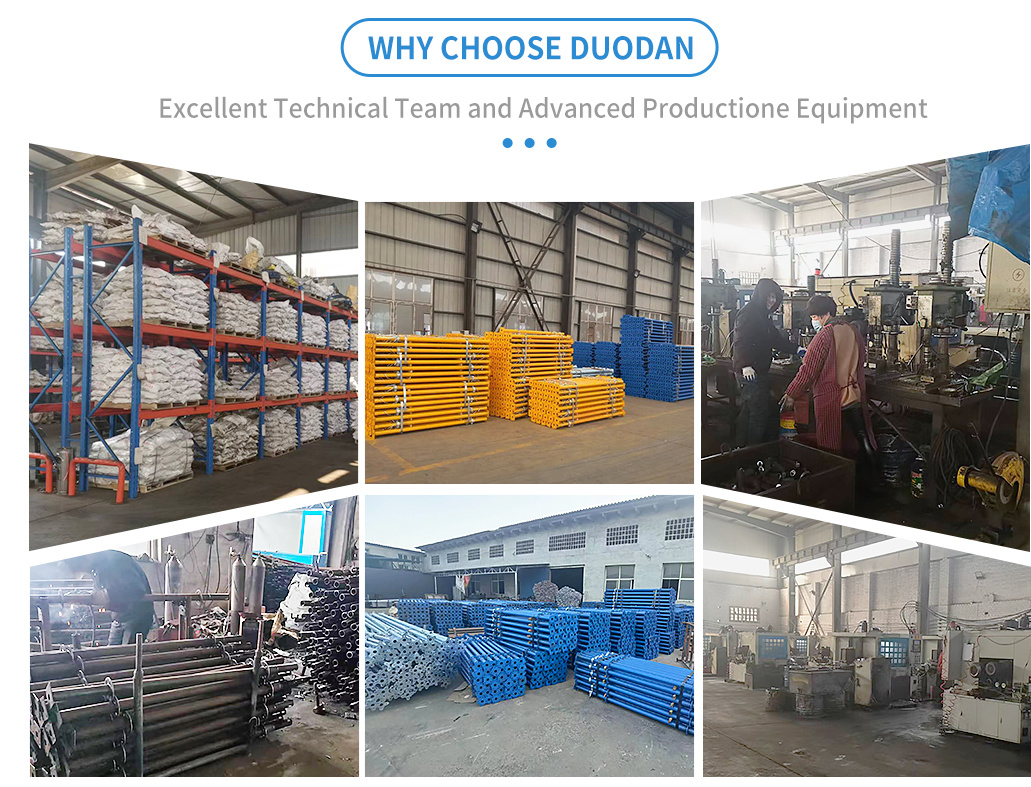

By virtue of our excellent technical team and advanced production equipment, we constantly explore and innovate, increase new varieties,expand reproduction, and unswervingly do good products of high quality, with high quality, high efficiency return society, to customers with the greatest satisfaction. The general manager of the company invites friends from all walks of life to visit guidance, business negotiations. Welcome new and old customers to customize new unique products with drawings and samples, and jointly contribute to the high efficiency and energy saving of building accessories products.
Q: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory.
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained API, ISO authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q:Can we get the some samples? Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
